TiMax II Soundhub

The TiMax2 system provides sound designers with an advanced real-time audio show-control machine for running live shows, events and attractions. The Soundhub-R version gives systems integrators and contractors a comprehensive set of audio routing, mixing, processing and playback resources with versatile remote control options.

Each Soundhub system incorporates a scalable multi-channel audio matrix and mix engine to handle multiple sources and multiple zones in a variety of performance and presentation AV installations ranging from museum, themed attraction, boardroom, hotels, bars and clubs through to theatre, opera, cruise ships and house of worship. Patented object oriented editing and translation of audio imaging allows for seemless transition between venues.

1602 Group distribute TiMax in the USA. For more information please contact TiMax worldwide sales and service at www.outboard.co.uk

Soundhub Features

A versatile audio toolbox and show controller suitable for both installations and live shows

Audio Matrix

Every matrix cross-point provides level adjustment plus the TiMax specialty of cross-point delay adjustment for creating multiple static or dynamically variable audio localizations.

Show Controller

An optional show controller adds and intuitive and sophisticated show control suite which can be used to run a show or program the Soundhub to respond to external cues.

audio animator

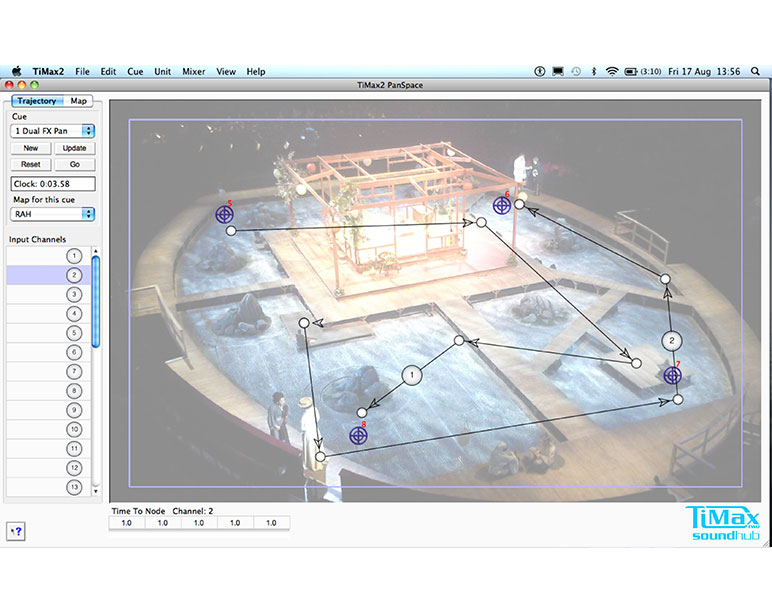

A delay matrix gives the sound designer tools to move sound or focus in a space with the existing speaker system, combined with software to program the delays in a fast and intuitive way.

playback

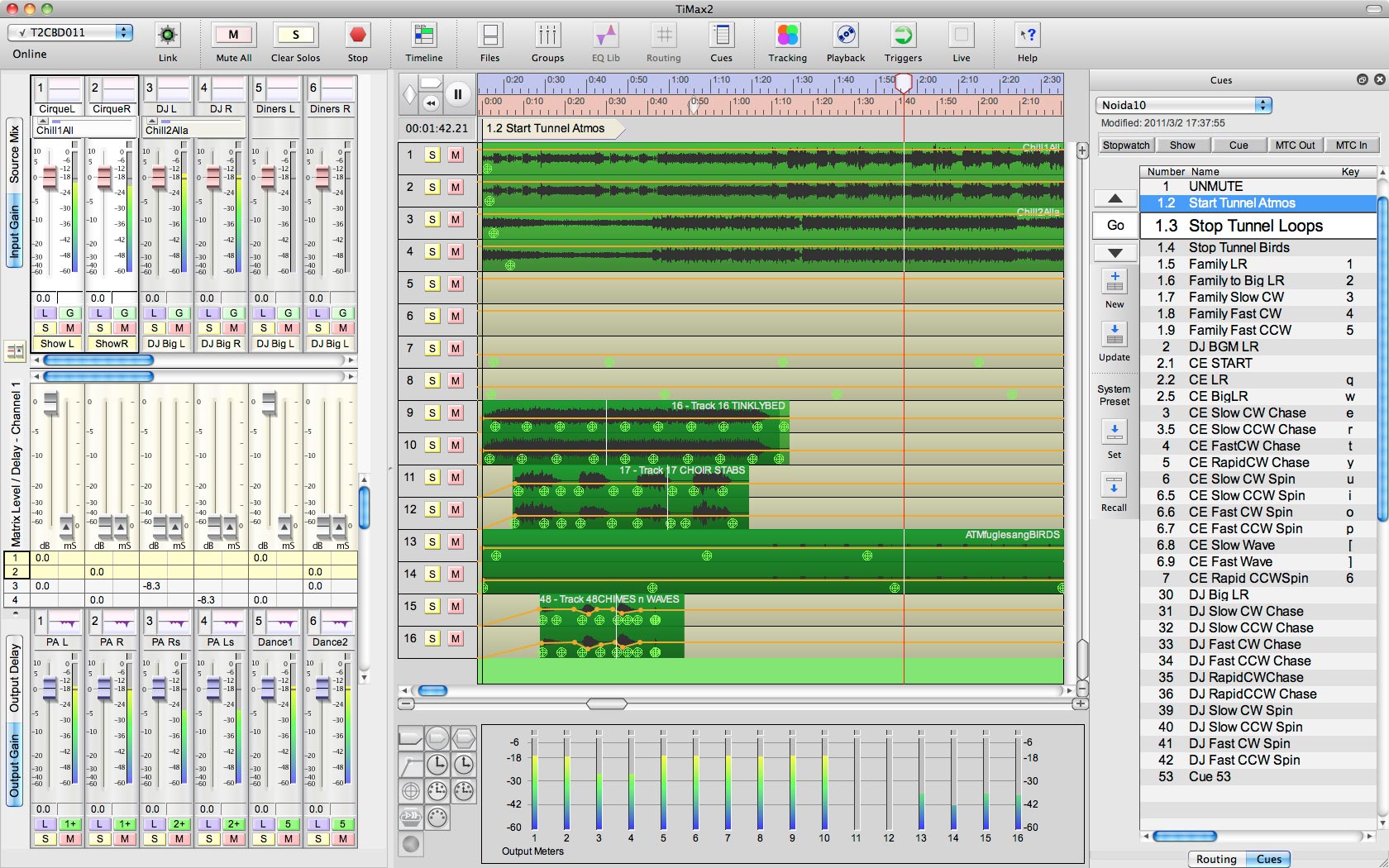

A multi-track playback of up to 64 tracks per cue. Tracks can be built up to create a sound mix in real-time that maybe edited later without having to remix the show.

corporate events

The TiMax Soundhub is used to make complex product launches come alive. Delay matrixing focuses and animates the sound, multi-track playback provides quick response to last minute changes. All adding up to very effective presentation.

themed environments

Museums and Attractions are lifted to a new level with immersive sound that is fast to respond and slaves to video.
The TiMax Soundhub is available in different versions providing specific solutions:

TiMax Soundhub-R: A level and delay matrix processor with playback and EQ for installations where an entry level system with simple cue control and up to 64 channels of IO are needed. Options of analog, AES, Dante, MADI and CobraNet are available

The TiMax Soundhub-S: Adds full featured show control to the Soundhub-R for complex installations, corporate events and live shows that need a full audio toolkit to create accurate audio imaging and immersive soundscapes.

The TiMax Soundhub VR: A sophisticated 16 track audio player with full show control for immersive and complex audio soundscapes with a wide variety of control interfaces. More Information

Elements of the TiMax object based sound animation is protected under US Patent

More information on the TiMax Soundhub is available at Outboard Electronics UK
